Main advantages of N.E.T. UL and CSA recognised Heads:
- Industry-standard 4-20mA analogue output (XIN only)
- MODBUS protocol on RS-485, for digital addressable systems (XIN/DIN only)
- Ready-to-use with a pre-calibrated sensor
- Simple calibration on the field via software or Modbus commands (only with NDIR sensors)
- UL and CSA approved stainless-steel or aluminium flameproof Ex d enclosure
- NETC2 and NETC3 heads recognised as components according to UL/CSA 60079-0 and 60079-1
- NET2X/NETC2 and NET3X/NETC3 heads recognised as componentsaccording to UL/CSA 61010-1
- Special ranges available on request

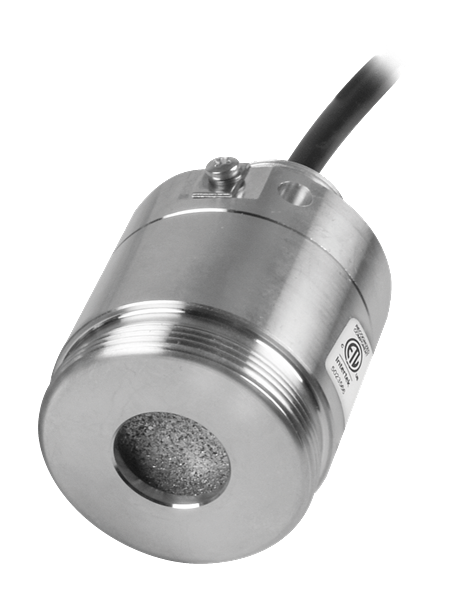

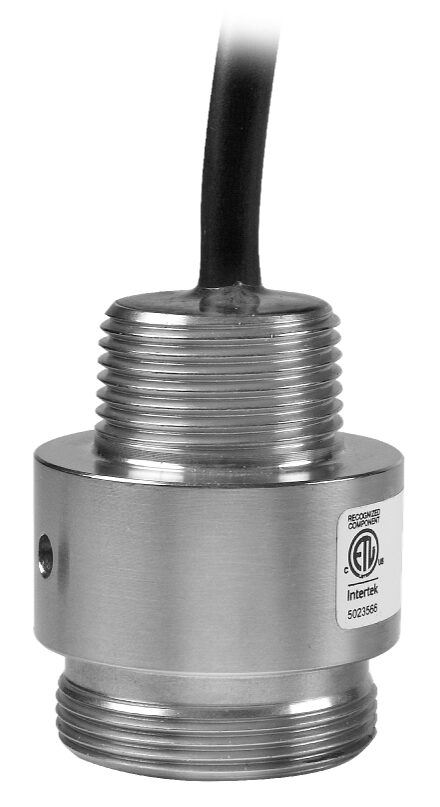

The NET UL/CSA product line is the new series of stainless-steel and aluminium enclosures designed by N.E.T. for use in fixed flammable gas detection where North American recognition is required.
This series is an ideal solution for gas detection system manufacturers who prefer not to invest in:
- Developing a sensor or finding it on the market;
- Developing electronics and firmware to process, compensate and linearise signals;
- Designing their own detection head;
- Obtaining UL and CSA recognition for the device.
The UL/CSA lineup covers various levels of integration, from a simple sensor+housing option to a full sensor+electronics+housing package (NDIR only), which can be integrated into existing gas detectors, included in new designs or used as a standalone field device connected to a controller. The full N.E.T. sensor range (Electrochemical Cells, Catalytic Bead Pellistors and Infrared) is available in UL/CSA Heads, with NDIR sensors also available with industry-standard 4-20mA and RS485 outputs.
The enclosure is fitted with an external M46 thread at the front end and comes with three possible threads at the rear to fit in most detector housings (¾”,1” or M20). Full PC software and connection boards are available for Head which include NDIR sensors to plot live readings, perform calibrations and modify an array of settings.
